产品详情

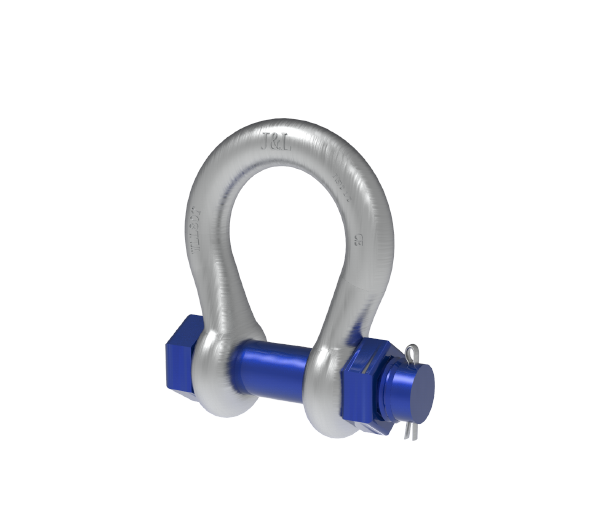

S6 级弓型卸扣

产品参数

产品型号 额定载荷
(t) 		W
(mm) 		D
(mm) 		d
(mm) 		E
(mm) 		P
(mm) 		S
(mm) 		O
(mm) 		L (BW 型 )
(mm) 		自重
(kg)
S-BW0.5-1/4 0.5 12 8 6.5 15.5 6.5 29 20 36.5 0.05
S-BW0.75-5/16 0.75 13.5 10 8 19 8 31 21.5 44.5 0.1
S-BW1-3/8 1 17 12 9.5 23 9.5 36.5 26 52.5 0.13
S-BW1.5-7/16 1.5 19 14 11 27 11 43 29.5 62 0.21
S- BW2-1/2 2 20.5 16 13 30 13 48 33 70.5 0.3
S-BW3.25-5/8 3.25 27 20 16 38 17.5 60.5 43 88 0.64
S-BW4.75-3/4 4.75 32 22 19 46 20.5 71.5 51 102.5 1.09
S-BW6.5-7/8 6.5 36.5 27 22.5 53 24.5 84 58 121 1.7
S-BW8.5-1 8.5 43 30 25.5 60.5 27 95 68.5 139 2.5
S-BW9.5-1 1/8 9.5 46 33 29.5 68.5 32 108 74 154 3.79
S-BW12-1 1/4 12 51.5 36 33 76 35 119 82.5 170.5 4.89
S-BW13.5-1 3/8 13.5 57 39 36 84 38 133.5 92 186.5 7.04
S-BW17-1 1/2 17 60.5 42 39 92 41 146 98.5 201 8.35
S-BW25-1 3/4 25 73 52 47 106.5 57 178 127 244 13.72
S-BW35-2 35 82.5 60 53 122 61 197 146 275 20.33
S-BW55-2 1/2 55 105 72 69 144.5 79.5 267 184 346 40.92




产品型号 额定载荷
(t) 		W
(mm) 		D
(mm) 		d
(mm) 		E
(mm) 		P
(mm) 		S
(mm) 		O
(mm) 		L (BX 型 )
(mm) 		自重
(kg)
S-BX0.5-1/4 0.5 12 8 6.5 15.5 6.5 29 20 37 0.05
S-BX0.75-5/16 0.75 13.5 10 8 19 8 31 21.5 45 0.1
S-BX1-3/8 1 17 12 9.5 23 9.5 36.5 26 54 0.13
S-BX1.5-7/16 1.5 19 14 11 27 11 43 29.5 62 0.22
S- BX2-1/2 2 20.5 16 13 30 13 48 33 71.5 0.31
S-BX3.25-5/8 3.25 27 20 16 38 17.5 60.5 43 89 0.67
S-BX4.75-3/4 4.75 32 22 19 46 20.5 71.5 51 105 1.14
S-BX6.5-7/8 6.5 36.5 27 22.5 53 24.5 84 58 121 1.76
S-BX8.5-1 8.5 43 30 25.5 60.5 27 95 68.5 136.5 2.58
S-BX9.5-1 1/8 9.5 46 33 29.5 68.5 32 108 74 149.5 3.96
S-BX12-1 1/4 12 51.5 36 33 76 35 119 82.5 164.5 5.06
S-BX13.5-1 3/8 13.5 57 39 36 84 38 133.5 92 179 7.29
S-BX17-1 1/2 17 60.5 42 39 92 41 146 98.5 194.5 8.75
S-BX25-1 3/4 25 73 52 47 106.5 57 178 127 239 14.22
S-BX35-2 35 82.5 60 53 122 61 197 146 269 21
S-BX55-2 1/2 55 105 72 69 144.5 79.5 267 184 344 42.12
S-BX85-3 85 127 85 76 165 92 330 200 401 74.8
S-BX120-3 1/2 120 133.5 95 92 203 104.5 371.5 228.5 450 123.6
S-BX150-4 150 140 110 104 228.5 116 368 254 500 165.9
